世界最大起重量单吊点桥式起重机（1300t）

——2024年重型机械世界之最科技成果获奖项目专题报道

获奖项目：单机百万千瓦级水电站1300t桥式起重机

首次投运时间：2017年

研制单位：太原重工股份有限公司(TAIYUAN HEAVY INDUSTRY CO.,LTD)，官网：www.tyhi.com.cn

联系人：常远，15103409671，changyuan@tz.com.cn

1300t桥式起重机是世界上单吊点起重量最大的桥式起重机，创新性地提出了承载三主梁铰接端梁桥架、主副两小车各自独立运行、钢丝绳多层折线缠绕的超大型桥机总体方案；开发了超大型桥机数字样机；建立了钢丝绳多层折线缠绕导向环轨迹数学模型；攻克了大临界载荷桥机整机抗震分析和优化；对大型关键零部件如大型横梁等进行设计结构与工艺制造的集成技术突破；研发了超大型起重机智能控制系统，提升了整机自动化、信息化水平及安全可靠性、维护便捷性。通过传统设计方法和现代设计方法有机集成，成功研制了承载大、自重小、结构紧凑、运行平稳、安全可靠的目前世界最大水电站主厂房1300t单吊点桥式起重机，填补了国内外空白，为国家重点工程白鹤滩及乌东德水电站的顺利建设提供了设备保障，为超大型桥式起重机的高端发展闯出了一条新路。

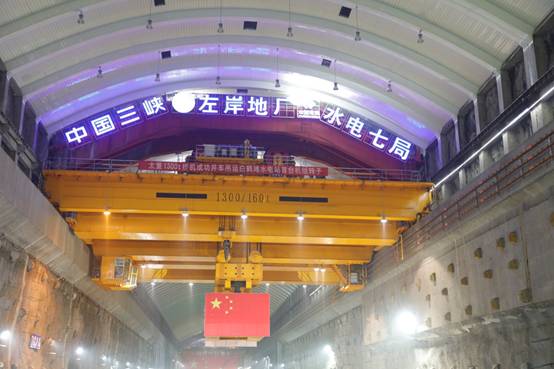

现场照片1：白鹤滩水电站左岸地下厂房两台1300t桥式起重机并车运行

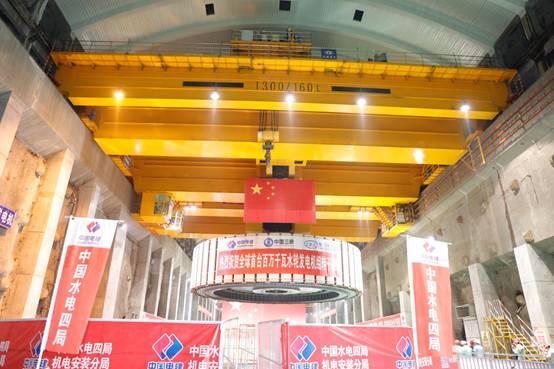

现场照片2：白鹤滩水电站左岸地下厂房两台1300t桥式起重机成功并车吊运全球首台百万千瓦水轮发电机组转子

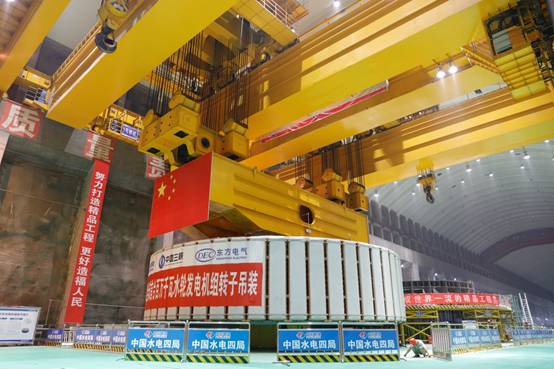

现场照片3：白鹤滩水电站左岸地下厂房两台1300t桥式起重机成功并车吊运全球首台百万千瓦水轮发电机组转子

The 1300t bridge crane is the largest bridge crane with single lifting point in the world. It innovatively puts forward the overall scheme of super large bridge which carries the bridge frame with three main beams and hinged ends, the main and auxiliary trolleys running independently, and the steel wire rope multi-layer folding line winding. Developed the super large bridge machine digital prototype.The trajectory mathematical model of the winding guide ring is established. Overcome the seismic analysis and optimization of large critical load bridge; Breakthroughs in the integration of design structure and process manufacturing of large key components such as large beams. The intelligent control system of super large crane has been developed, which has improved the automation, information level, safety, reliability and maintenance convenience of the whole machine. Through the organic integration of traditional design methods and modern design methods, the 1300t single-point bridge crane for the main building of the world's largest hydropower station with large load capacity, small weight, compact structure, stable operation, safety and reliability has been successfully developed, filling the gaps at home and abroad, and providing equipment support for the smooth construction of the national key projects Baihetan and Wudongde Hydropower Station. It has created a new way for the high-end development of super large bridge cranes.
